Barbed wire
1.Introduction of barbed wire
Barbed wire is a common and cost-effective wire used in perimeter security fencing and farm fencing. A barbed wire fence is very easy to construct and can last for several decades even with minimal maintenance work.
Installing barbed wire is simple and requires minimum level of skills. Several barbed wire strands might be necessary to be installed in between posts. The multiple strands of barbed wire are necessary to ensure that the gaps will be small enough to prevent livestock from passing through. Smaller livestock, such as sheep and goats, will require closely spaced barbed wire strands in between posts to prevent them from crossing over.

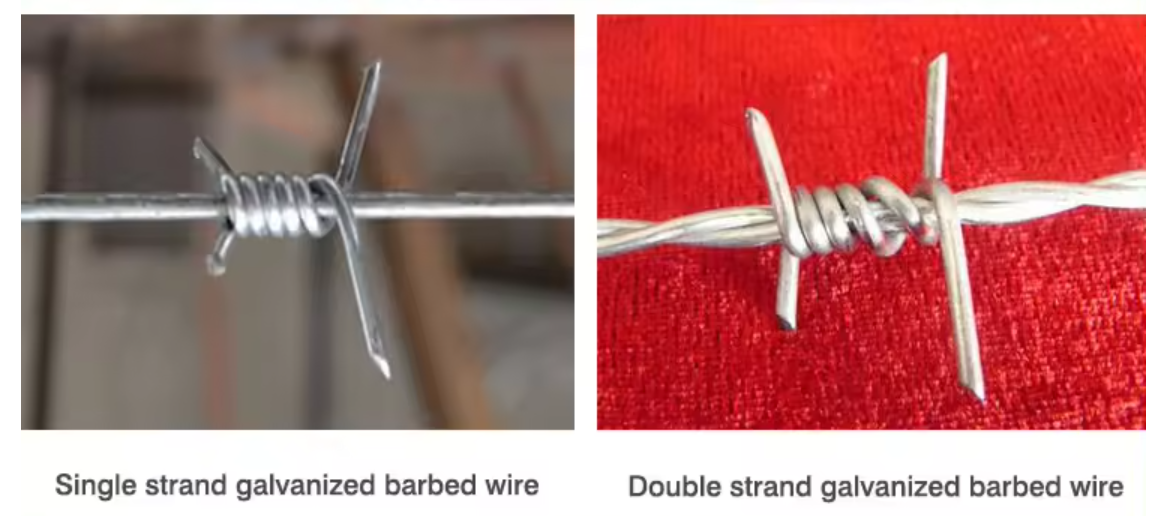

We supply galvanized barbed iron wire in IOWA type, with 2 strands, 4 points.Barbs' distance 3-6 inches ( Tolerance +- 1/2" ).Galvanized Barbed Iron Wire offered by us is suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.
2.Specification of barbed wire
Barbed Wire Specification | ||||
| Type | Wire Gauge (SWG) | Barb Distance (cm) | Barb Length (cm) | |
| Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire | 10# x 12# | 7.5-15 | 1.5-3 | |
| 12# x 12# | ||||
| 12# x 14# | ||||
| 14# x 14# | ||||
| 14# x 16# | ||||
| 16# x 16# | ||||
| 16# x 18# | ||||

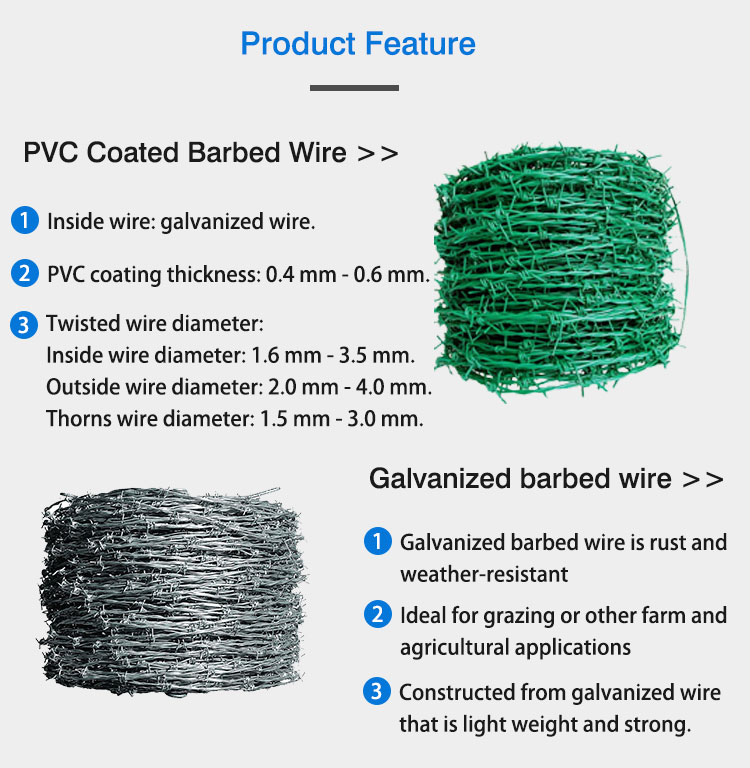

| PVC coated barbed wire; PE barbed wire | before coating | after coating | 7.5-15 | 1.5-3 |
| 1.0mm-3.5mm | 1.4mm-4.0mm | |||
| BWG11#-20# | BWG8#-17# | |||
| SWG11#-20# | SWG8#-17# | |||
PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request. | ||||
Specification
Application
Main Features.
1) Sharp edge frightens intruders and thieves.
2) High stability, rigidity, and tensile strength to prevent cutting or destroying.
3) Anti-acid and alkali.
4) Harsh environment resistance.
5) Corrosion and rust resistance.
6) Available to combine with other fences for high level security barrier.
7) Convenient installation and uninstallation.
8) Easy to maintain.
9) Durable and long service life.
