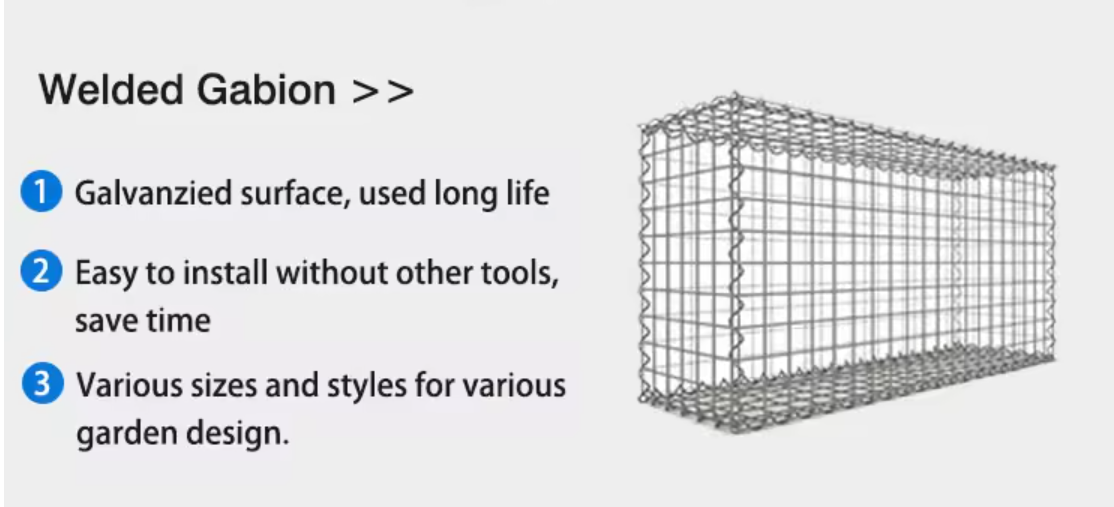

Welded gabion
Specification
1. Material: Heavy duty steel wire.
2. Style: Circle, arch, square, rectangle, etc.
3. Wire Diameter: 4–8 mm.
4. Mesh Size: 5 × 5, 7.5 × 7.5, 5 × 10 cm, etc.
5. Size
Standard size (L × W × H): 100 × 30 × 50, 100 × 30 × 80, 100 × 50 × 50, 100 × 50 × 100, 100 × 30 × 100, 100 × 10 × 25, 90 × 90 × 70 cm, etc.
Gabion post box: 44 × 31 × 143 cm.
Circle gabion box: 180 × 10 × 90, 180 × 50 × 90, 160 × 10 × 70, 160 × 50 × 70 cm.
Spiral gabion box: 15 × 20, 15 × 30, 15 × 40, 15 × 50, 15 × 60 cm.
6. Process: Welding.
7. Surface Treatment: Hot dipped galvanized, PVC coated.
8. Color: Rich black, dark green, sliver or customized.

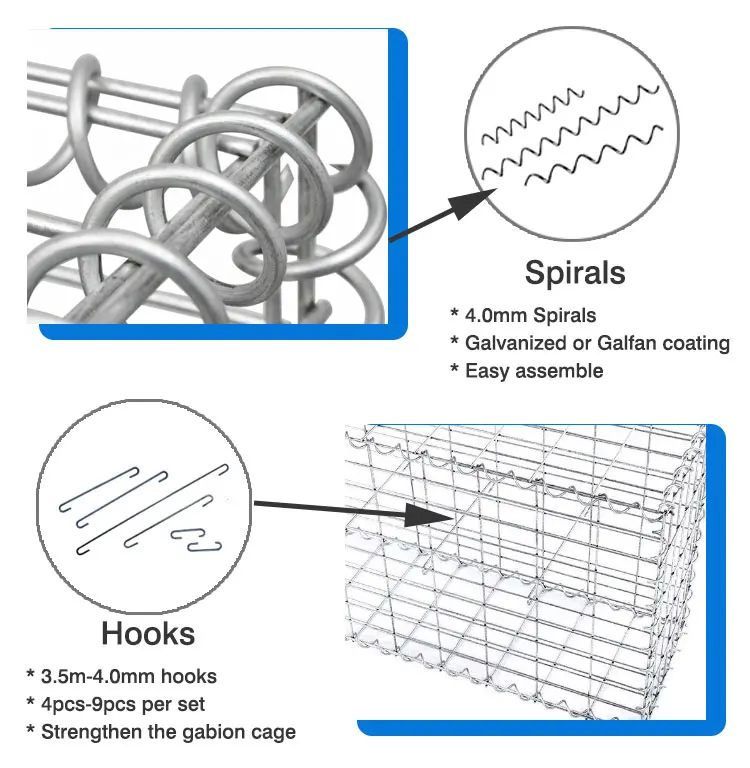

9. Components: Spiral joint, internal bracing wire.
10. Mounting: Spiral connection system.
11. Package: Packed in carton, or other special requirement.
 |  |  |
Hot-dipped Galvanized Wire* Galvanized before welding * Cheaper * Wire is smooth and shinning | Galfan Wire* High zinc >200g * Economical * long life time >8-10years | Heavy Galvanized* Galvanized after welding * Top Quality * Zinc>300g * Longest life time >10-20years |
